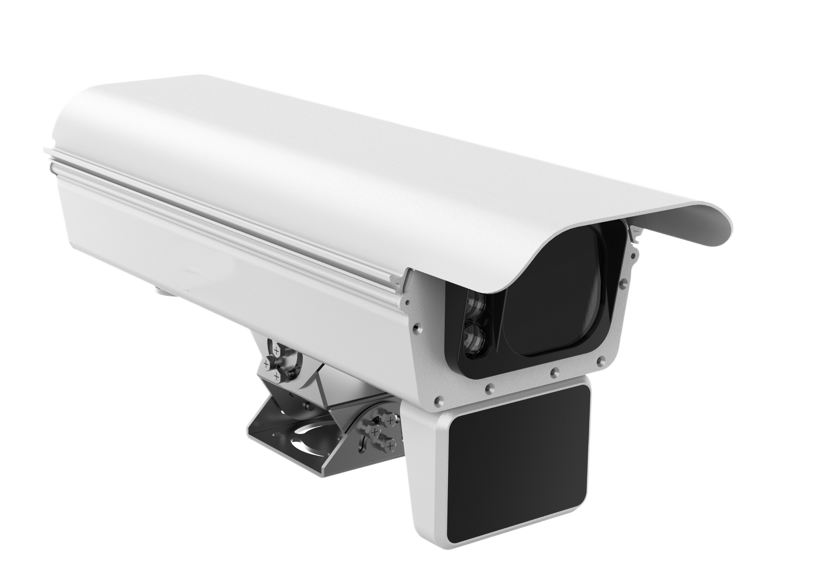

Smart Enforcement Camera

Product Overview

The Smart Enforcement Camera is an intelligent capture device that integrates video acquisition, AI recognition, and violation evidence generation. Featuring a high-performance image sensor and deep learning algorithms, it supports multi-dimensional perception and behavior analysis of vehicles, non-motorized vehicles, and pedestrians. Widely deployed at intersections, road sections, ramps, and other traffic scenarios, it provides reliable data support for traffic enforcement, flow monitoring, and safety alerts.
The device supports both electronic police and checkpoint operating modes, with flexible configuration for different scenarios. It serves as a key component of the smart traffic perception system.

Key Advantages

Advantage	Description
High-Definition Imaging	High-performance CMOS sensor with up to 4K resolution; supports low-light sensitivity, wide dynamic range, and strong light suppression for clear imaging day and night
AI-Powered Recognition	Built-in deep learning algorithms for vehicle, non-motorized vehicle, and pedestrian detection and feature recognition with industry-leading accuracy
Flexible Operating Modes	It supports electronic police mode (violation capture) and checkpoint mode (vehicle passage recording), which can be flexibly switched according to scenarios.
Comprehensive Violation Detection	Supports detection of multiple violation types, including running red lights, wrong-way driving, illegal line crossing, driving in wrong lanes, failure to wear seatbelts, and using mobile phones while driving.
Non-Motorized Vehicle Optimization	Specialized algorithms optimized for non-motorized vehicles, supporting detection of 8 violation types including red-light running, wrong-way riding, helmet non-compliance, illegal passengers, and lane encroachment
Open Integration	Supports standard protocols for connection to unified signal control platforms; integrates with signal controllers, radar-vision sensors, MEC, and other roadside devices
High Reliability	Industrial-grade components with wide operating temperature range and robust protection for continuous roadside operation

Technical Specifications (for example only, multiple models are available.)

Parameter	Specification
Image Sensor	1/1.8 inch CMOS
Resolution	4096*2160 (4K)
Frame Rate	25fps / 30fps
Minimum Illumination	0.0001 Lux (color) / 0.00001 Lux (b/w)
Lens Options	12mm / 16mm / 25mm / 50mm fixed focal
Video Compression	H.265 / H.264 / MJPEG
Illumination	LED strobe / Gas flash (optional)
Interfaces	1RJ45, 1RS485, 1audio input, 1audio output, alarm input, alarm output
Operating Temperature	-40°C ~ +70°C
Protection Rating	IP67

Key Features

Vehicle Violation Capture (Intersection Enforcement Mode)

Violation Type	Detection Capability
Red-Light Running	Supports 3 location images + 1 close-up image
Wrong Lane Usage	Supports straight, left-turn, right-turn, and U-turn detection
Wrong-Way Driving	Supports, combined with lane line detection
Lane Violations	Solid line crossing, straddling, illegal lane changes
Restricted Area Violation	Supports truck restrictions, one-way streets, etc.
Seatbelt Violation	Supports driver and front passenger detection
Mobile Phone Use	Supports handheld phone detection
Failure to Yield to Pedestrians	Supports crosswalk scenarios

Vehicle Passage Recording (Roadway Monitoring Mode)

Feature	Description
License Plate Recognition	Supports global license plates, commercial plates, and special vehicle plates
Vehicle Feature Recognition	Vehicle type (sedan, SUV, MPV, pickup, truck, bus), body color (10 colors), make
Vehicle Trajectory Tracking	Supports continuous passage recording across multiple monitoring points
Section Speed Measurement	Supports average speed calculation between multiple monitoring points

Non-Motorized Vehicle Violation Capture (Specialized)

Violation Type	Detection Capability
Red-Light Running	Supports 15-second violation video clip + images
Wrong-Way Riding	Supports, based on lane direction detection
Helmet Violation	Supports rider and passenger helmet detection
Illegal Passenger	Supports detection of illegal passenger-carrying
Lane Encroachment	Detects non-motorized vehicles entering motor vehicle lanes
Illegal Modification	Detects illegal umbrella/canopy installation
Illegal Parking	Detects non-motorized vehicles parking in restricted areas

Incident Detection & Alert

Incident Type	Detection Capability
Congestion Detection	Identifies intersection or segment congestion and reports in real time
Accident Detection	Identifies sudden stops, collisions, breakdowns
Pedestrian Incursion	Detects pedestrians entering roadways or crossing barriers
Debris Detection	Detects fallen objects or debris on the road

Operating Modes

Mode	Description	Application Scenarios
Electronic Police Operating Mode	Violation capture focused; supports signal coordination; outputs complete evidence chains	Signalized intersections, red-light enforcement
Checkpoint Operating Mode	Passage recording focused; continuous capture; outputs license plate, vehicle type, trajectory	Road sections, section speed measurement, security checkpoints
Hybrid Mode	Simultaneously supports both enforcement and monitoring functions	Key intersections, critical road sections

Application Scenarios

Scenario	Recommended Mode	Application
Signalized Intersections	Intersection Enforcement Mode	Red-light running, lane violations, signal-coordinated capture
Urban Expressways	Roadway Monitoring Mode	Passage recording, section speed measurement, license plate recognition
Arterial Roads	Hybrid Mode	Violation capture + passage recording + incident detection
Non-Motorized Vehicle Lanes	Intersection Enforcement Mode (specialized)	Red-light running, helmet violations, illegal passengers, wrong-way riding
School & Hospital Zones	Intersection Enforcement Mode	Failure-to-yield, illegal parking enforcement
Rural Roads	Roadway Monitoring Mode	Passage recording, license plate recognition

Deployment Options

Deployment Type	Description
Signal Pole Mount	Installed on signal poles or enforcement poles, synchronized with traffic signals for intersection violation capture
Gantry / L-Pole Mount	Installed on road gantries or L-poles for passage recording and section speed measurement
Integrated Deployment	Co-located with radar-vision sensors, lighting, and other roadside devices on the same pole for unified power and network connectivity

Why Choose Our Enforcement Camera

Advantage	Description
Advanced Algorithms	Deep learning models optimized for traffic scenarios; multi-dimensional recognition for vehicles, non-motorized vehicles, and pedestrians
Flexible Modes	Freely switch between intersection enforcement, roadway monitoring, and hybrid modes for versatile applications
Non-Motorized Specialization	8 types of non-motorized vehicle violation capture, addressing key urban management challenges
Open Integration	Supports standard protocols for integration with signal controllers, radar-vision sensors, MEC, and unified signal control platforms
Customizable Algorithms	Algorithm customization and upgrades available to adapt to regional enforcement regulations
High Reliability	Industrial-grade design for continuous outdoor operation in challenging environments

Project Cases

Nanjing Smart City Project

Deployed intersection enforcement and roadway monitoring cameras
Radar-vision sensors integrated with enforcement cameras achieved vehicle detection accuracy exceeding 95%
Specialized algorithm optimized for non-motorized vehicle waiting areas

Guangzhou Signal Controller Upgrade Project

Enforcement cameras connected to the unified signal control platform
Red-light violation capture integrated with signal controller coordination
Violation data uploaded in real time to support remote enforcement

Contact Us

Our enforcement camera supports algorithm customization and scenario-specific configuration. Contact us for technical discussions and solution development.
